CP28 – Pneumatic Tyre Roller

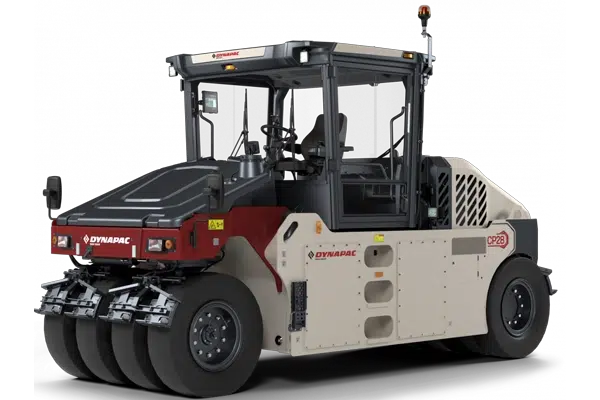

The Dynapac CP28 is a high-performance pneumatic tire roller engineered for superior asphalt compaction on highways, urban roads, commercial developments, and large-scale infrastructure projects. With an operating mass of up to 28,000 kg (with full ballast), it delivers the deep, uniform compaction essential for smooth, durable road surfaces. Whether you are looking for a dependable compactor, a heavy-duty roller compactor, or a professional paving machine solution in the UAE, the Dynapac CP28 sets the benchmark for quality and productivity.

Backed by a powerful Cummins turbocharged diesel engine, a flexible ballast system, and precision hydrostatic steering, the CP28 is the trusted choice for contractors, road builders, and construction companies across Dubai, Abu Dhabi, Sharjah, Ras Al Khaimah, and the wider UAE.

Request Price & Availability

Looking for the Dynapac CP28 price in UAE? Need availability confirmation or a tailored quote? Al Shirawi Trading provides fast quotations, flexible payment terms, and after-sales support for the Dynapac CP28 across the UAE.

Request a Quote
Contact WhatsApp
CP28 – Pneumatic Tyre Roller

Technical Specifications

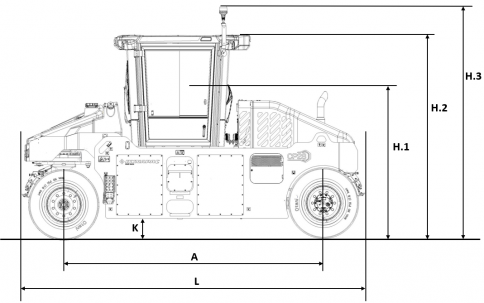

blueprint-Dynapac CP28 Pneumatic tire rollers
Dynapac CP28 Pneumatic tire rollers
A. Wheelbase3900 mm

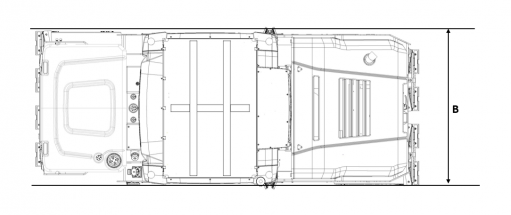

B. Width, with symmetric cab2085 mm
B1. Width, with assymetric cab2350 mm
H1. Height, w/o ROPS/Cab2330 mm
H2. Height, with ROPS/Cab3000 mm
H3. Height max. with ROPS/Cab3430 mm
K. Ground clearance270 mm
L. Length5150 mm
O. Overlap45 mm
R2. Turning radius, inside5700 mm



Masses
Operating mass (incl. ROPS)9600 kg
Operating mass (incl. Cab)9900 kg
Mass with max. ballast28000 kg
Mass with water ballast13000 kg
Mass with wet sand ballast16300 kg
Operating mass (Canopy)
Operating mass with max ballast (Canopy)
Operating mass (ROPS & FOPS)
Operating mass with max ballast (ROPS & FOPS)
Operating mass (Cab)
Operating mass with max ballast (Cab)
Traction
Speed low7 km/h
Speed high20 km/h
Max. theoretical gradeability27 %
Engine / Drive
ManufacturerCummins
ModelF 3.8 (Stage V/T4f)
Rated power, SAE J1995101 kW (134 hp) @ 2.200 rpm
TypeWatercooled Turbo Diesel
Fuel tank capacity210 l
DEF tank capacity23 l
Electrical system24 V with alternator of 70A
Alternative Engine
ManufacturerCummins
ModelQSF 4.5 (Stage IIIA/Tier3/MAR1)
Rated power, SAE J199597 kM (130hp) @ 2.200 rpm
TypeWatercooled Turbo Diesel
Fuel tank capacity210 l
Hydraulic system
DrivingAxial piston pump with variable displacement.
Axial piston motors (2) with variable displacement.
SteeringHydrostatic
Service brake2 multidisc brakes on rear wheels
Parking/
Emergency brake		Failsafe multidisc brakes in both gear boxes

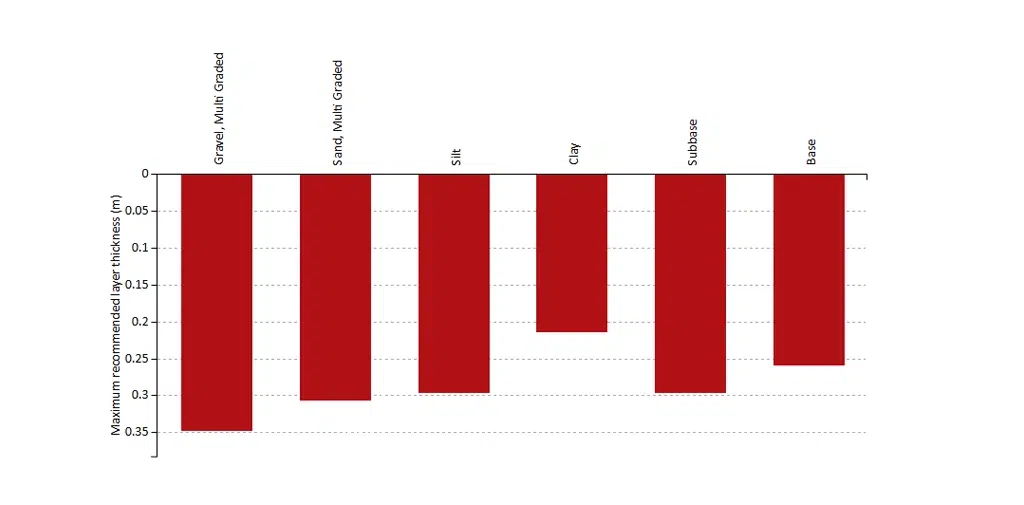

SOIL COMPACTION

Key Features

Why Choose the Dynapac CP28 Pneumatic Tire Roller?

  • Exceptional Asphalt Compaction Performance

    The Dynapac CP28 is purpose-built for asphalt roller work, delivering consistent, deep compaction across highways, main road surfaces, parking areas, and commercial developments. Its pneumatic tire design ensures kneading compaction action, sealing the asphalt surface layer for a smooth, dense finish — making it one of the top-performing asphalt rollers for sale in the UAE market.

  • Flexible Ballast System for Variable Roller Weight

    The CP28 features a unique ballast system allowing operators to vary the roller compactor weight from approximately 9,600 kg up to 28,000 kg using water or wet sand ballast. This versatility means one machine can function as a lighter smooth drum roller for initial passes or a heavy 10 ton road roller configuration for deep compaction layers, adapting to the specific requirements of each paving project.

  • New Frame Design for Maximum Visibility

    The redesigned frame structure gives operators a clear line of sight to all four tire edges, improving precision on edge-compaction work along kerbs, lane edges, and overlay boundaries. Enhanced visibility reduces the risk of compaction overlap errors and improves overall job quality.

  • Wide Tire Overlap for Uniform Compaction Width

    With a generous 45 mm tire overlap, the Dynapac CP28 ensures no uncompacted strips are left between passes — critical for highway and main road asphalt compaction where uniformity directly impacts pavement lifespan and ride quality.

  • Powerful, Reliable Cummins Engine

    owered by a Cummins F 3.8 turbocharged diesel engine (101 kW / 134 hp), the CP28 delivers consistent performance even in demanding UAE climate conditions. The EcoMode function optimises fuel consumption during lower-load operations, reducing operating costs without compromising compaction output.

  • UAE After-Sales Support from Al Shirawi Trading

    Al Shirawi Trading provides comprehensive after-sales support across the UAE, including genuine Dynapac spare parts availability, preventive maintenance programmes, and technical field support. For contractors working in Dubai, Abu Dhabi, Sharjah, Ras Al Khaimah, and across the Emirates, Al Shirawi is the trusted local partner for Dynapac compactor and paving machine equipment.

Why Buy from Al Shirawi Trading?

As the authorised UAE dealer for Dynapac, Al Shirawi Trading provides complete sales service, parts, and after-sales support for the Dynapac CP28 pneumatic tire roller. Our goal is to help contractors improve asphalt compaction quality, maximise machine uptime, and reduce total cost of ownership across UAE road construction and infrastructure projects.

  • Authorised Dynapac dealer for the UAE
  • Genuine Dynapac spare parts availability
  • Technical support for asphalt compaction and machine applications
  • Preventive maintenance and long-term after-sales support
  • Support for contractors working in Dubai, Abu Dhabi, Sharjah, Ras Al Khaimah, and across the UAE

When looking for a Dynapac roller for sale in UAE, Al Shirawi Trading is your single, authorised point of contact for sales, service, and genuine spare parts.

Applications

The Dynapac CP28 pneumatic tire roller is designed for use on road construction, asphalt resurfacing, and infrastructure projects across the UAE and the wider GCC region. Its flexible ballast system and high-output Cummins engine make it suitable for medium to large-scale projects, including:

Typical applications include:

  • Highway and main road asphalt compaction

  • Urban road construction and resurfacing

  • Parking area compaction

  • Commercial and residential development access roads

  • Industrial roads and warehouse facility areas

  • Airport service road and taxiway compaction

  • Port and logistics vehicle access roads

  • Municipal road maintenance projects

  • Infrastructure and civil construction projects

  • Primary roads, free-zone roads, and internal project access roads

Comparison

Dynapac CP28 vs Other Pneumatic Tire Rollers

FeatureDynapac CP28Typical Competitors
Max Ballast WeightUp to 28,000 kgTypically 15,000–20,000 kg
EngineCummins F 3.8 / QSF 4.5 (Stage V / T4f)Various – often lower emission compliance
Tire Overlap45 mm for seamless compaction widthOften 20–30 mm
Ballast OptionsWater or wet sandWater only in most models
Operator StationSliding and swivel for 360° accessFixed or basic swivel
UAE Dealer SupportAl Shirawi Trading – authorised Dynapac UAE dealerVaries by region
Spare Parts AvailabilityGenuine Dynapac parts, fast UAE availabilityThird-party or long lead times



The Dynapac CP28 is the preferred roller compactor for contractors who need a machine that performs consistently on UAE asphalt paving projects while offering the lowest long-term maintenance cost.

FAQs

Frequently Asked Questions

  • What is the Dynapac CP28 used for?

    The Dynapac CP28 is a pneumatic tire roller (also called a rubber tire roller or compactor) used for asphalt compaction on roads, highways, parking areas, commercial developments, and infrastructure projects. Its kneading compaction action seals the asphalt surface layer, improving pavement density and longevity.

  • What is the Dynapac CP28 price in UAE?

    The Dynapac CP28 price in the UAE varies based on configuration (ROPS, Cab, ballast type) and optional attachments. Contact Al Shirawi Trading for a current, competitive quotation and availability confirmation in the UAE.

  • Where can I buy the Dynapac CP28 in UAE?

    The Dynapac CP28 is available through Al Shirawi Trading, the authorised Dynapac dealer in the UAE. We supply Dynapac rollers, compactors, and paving machines across Dubai, Abu Dhabi, Sharjah, Ras Al Khaimah, and all Emirates.

  • What is the operating mass of the Dynapac CP28?

    The Dynapac CP28 has an operating mass of 9,600 kg (with ROPS) up to 28,000 kg with maximum ballast — equivalent to a 28 ton roller compactor at full operating weight.

  • Is the Dynapac CP28 suitable for asphalt compaction in UAE conditions?

    Yes. The CP28's Cummins turbocharged diesel engine is rated for operation in high-ambient-temperature environments, making it fully suitable for UAE summer construction conditions. Its EcoMode function also helps manage fuel consumption during the high-heat months.

  • What is the difference between the Dynapac CP28 and a double drum roller compactor?

    The Dynapac CP28 is a pneumatic tire roller, which uses rubber tires to apply a kneading compaction action ideal for sealing asphalt surfaces. A double drum roller compactor uses two steel drums and is typically used for breakdown compaction passes. Both are commonly used together on asphalt paving projects.

  • Does Al Shirawi Trading provide Dynapac CP28 spare parts?

    Yes. Al Shirawi Trading maintains a stock of genuine Dynapac spare parts for the CP28 and other Dynapac compactors and paving machines, ensuring fast turnaround and minimal downtime for your road roller or asphalt roller.

  • Does Al Shirawi Trading provide service for the Dynapac CP28?

    Yes. Our trained service technicians provide scheduled maintenance, warranty support, and breakdown assistance for the Dynapac CP28 roller compactor across the UAE.
